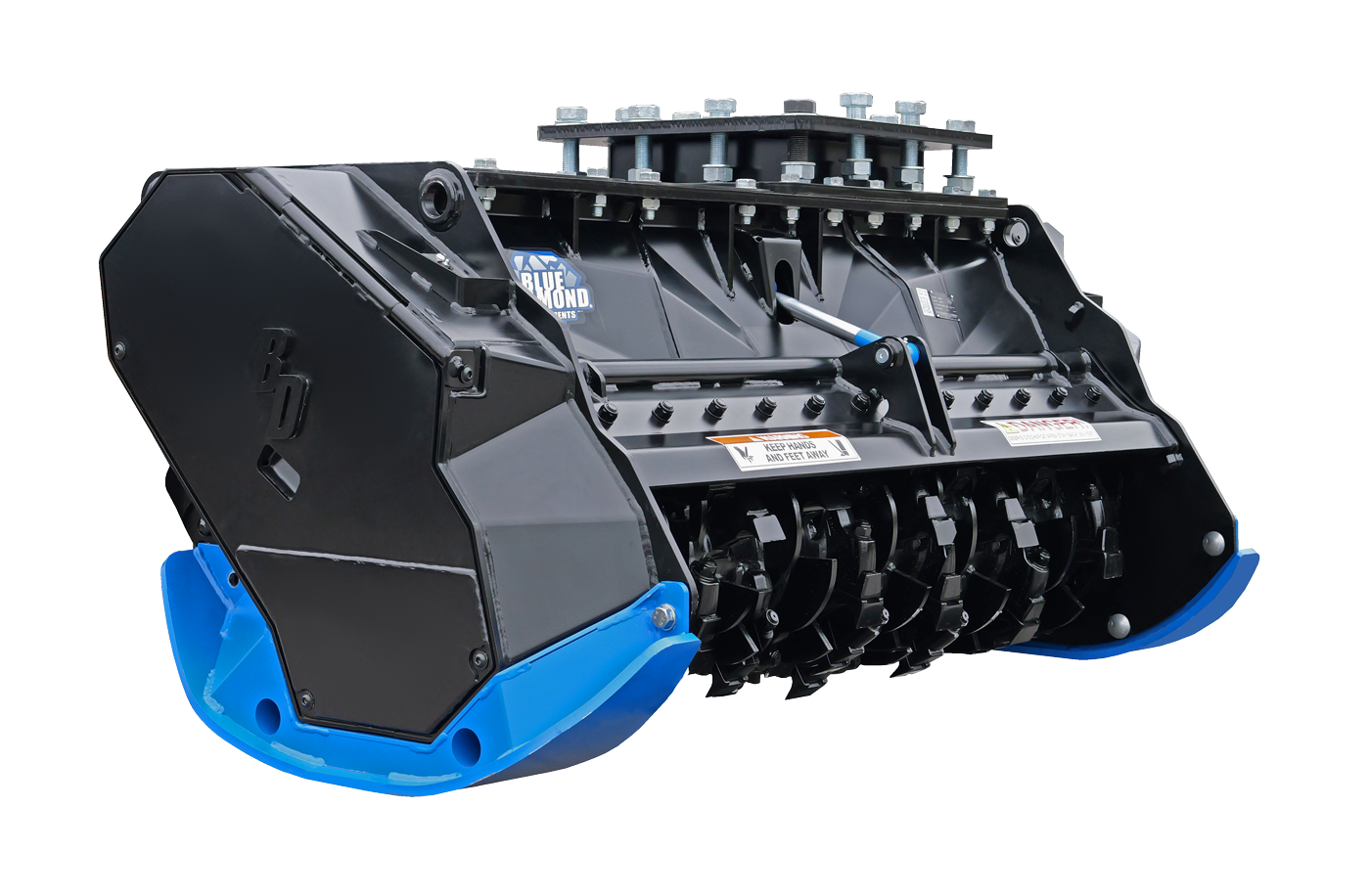

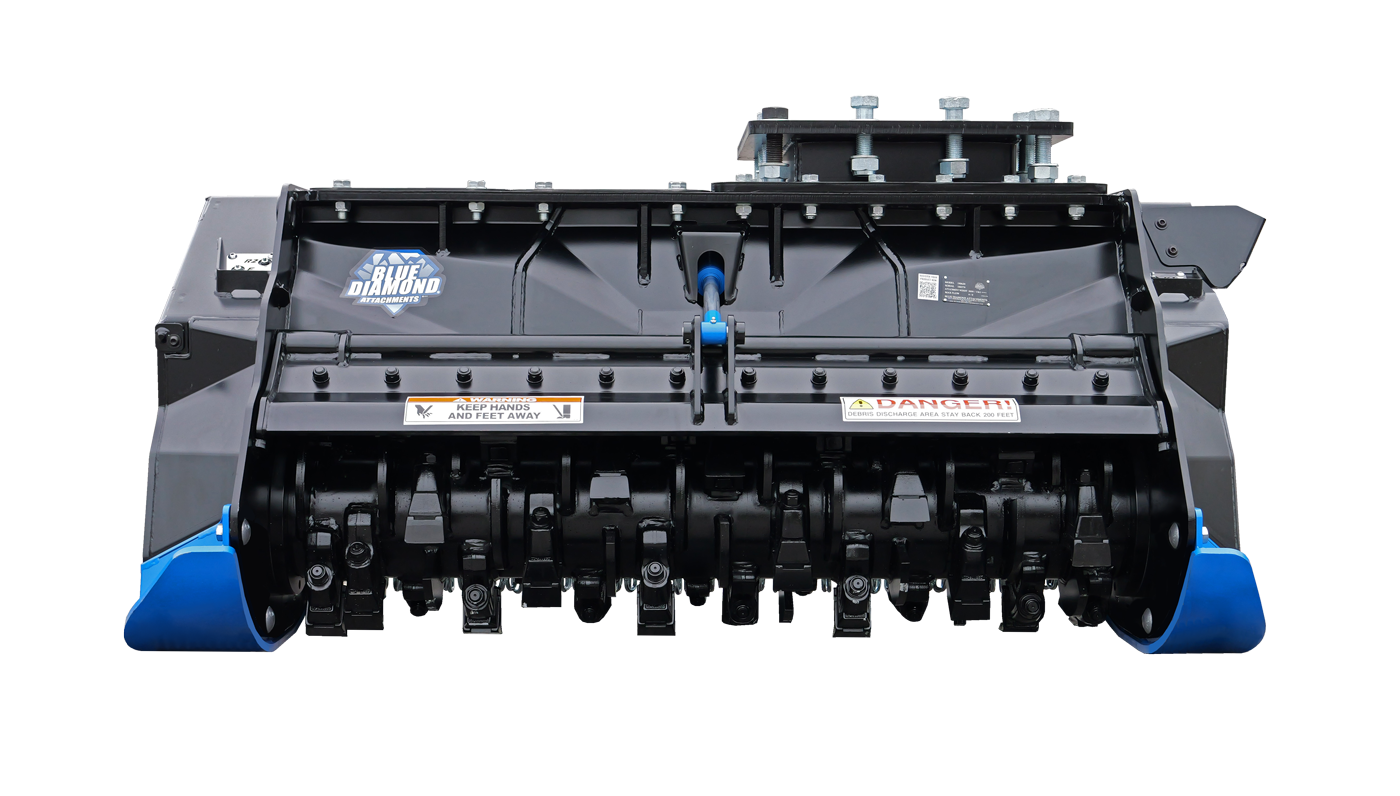

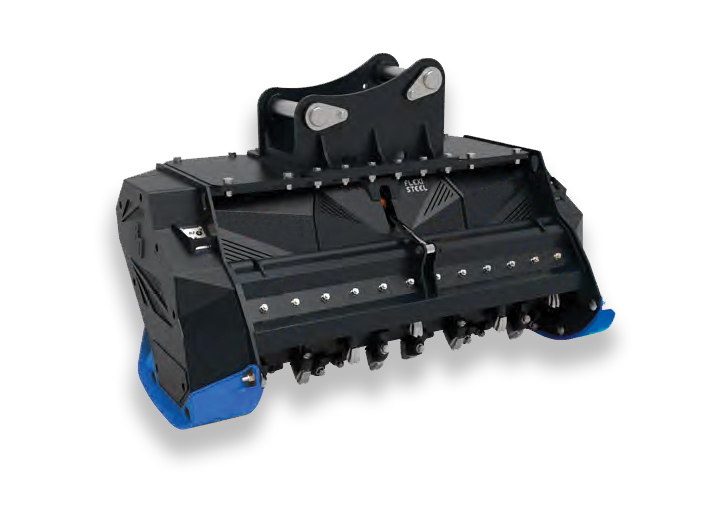

EXCAVATOR DRUM MULCHER - SDX
The Blue Diamond® SDX Excavator Drum Mulcher is the one of the quickest ways to turn trees into wood chips in a matter of minutes. Our most durable drum mulcher is built with high strength steel and recommended for 49K-70K excavators.

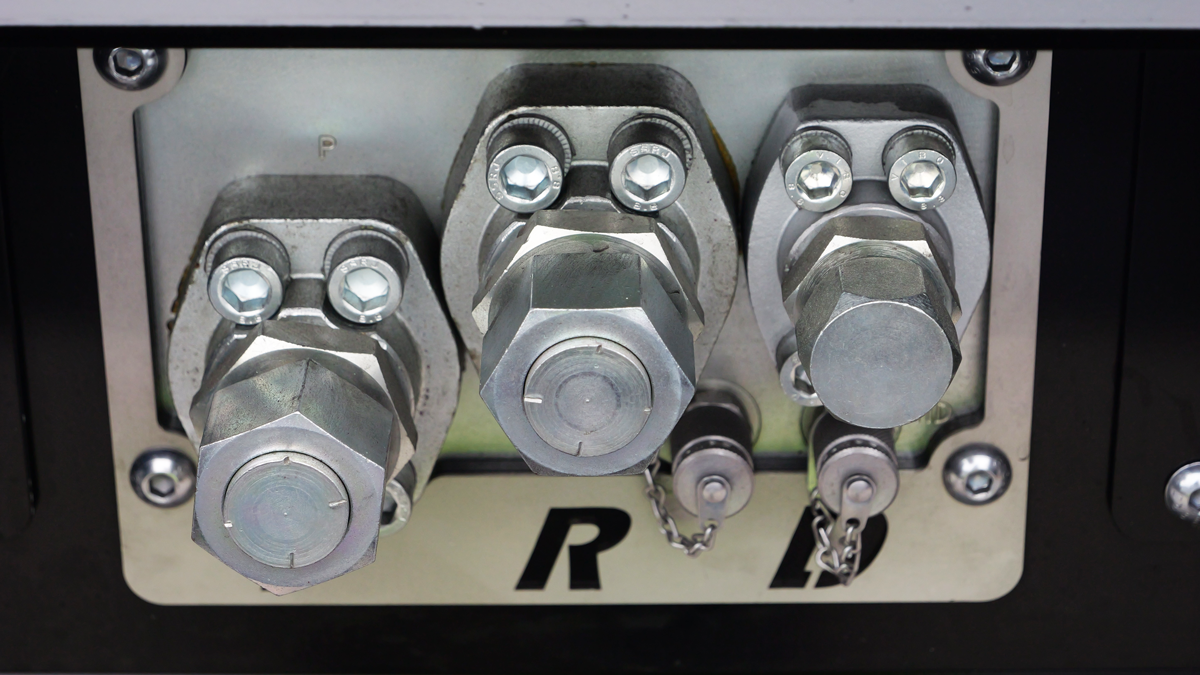

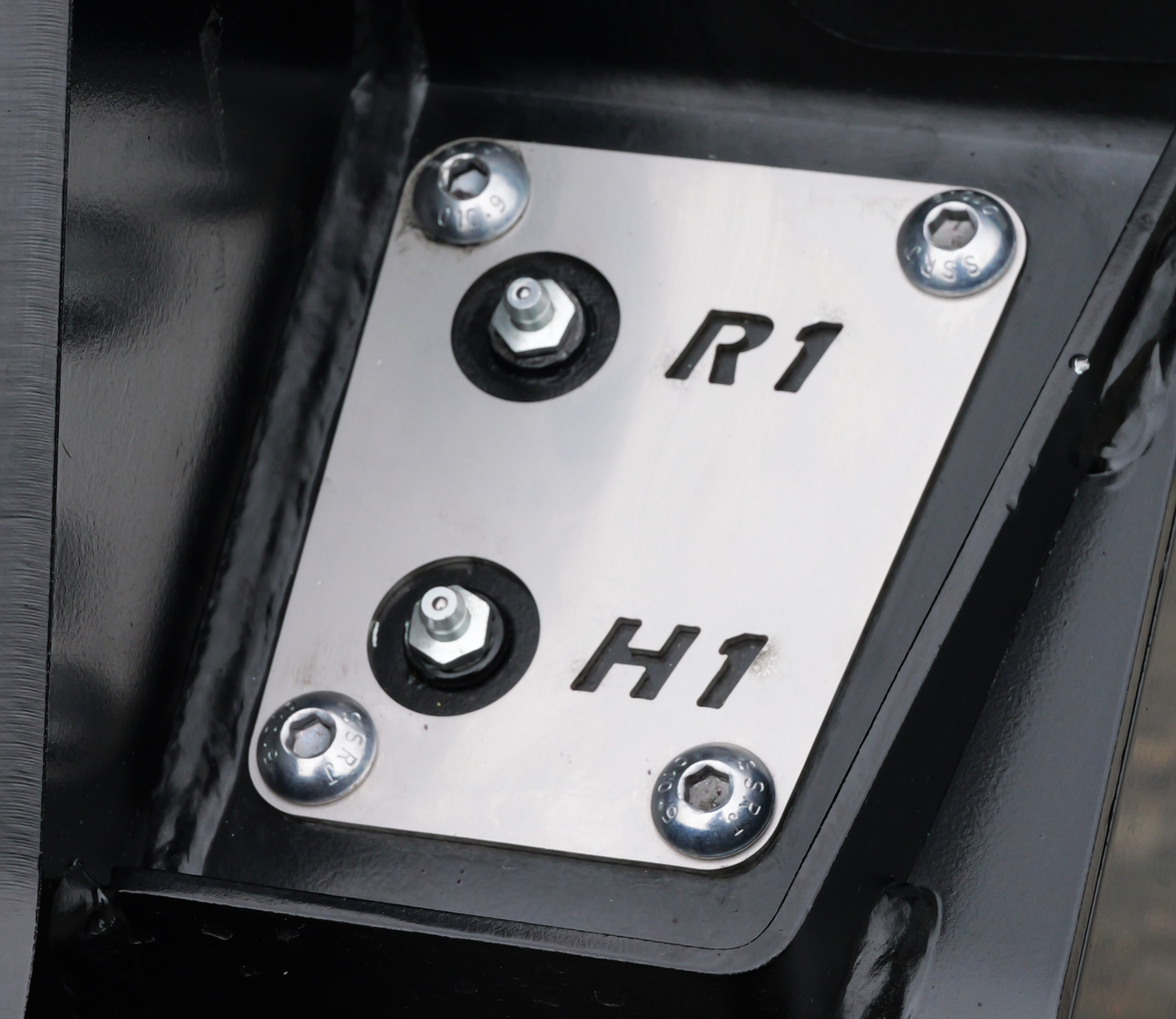

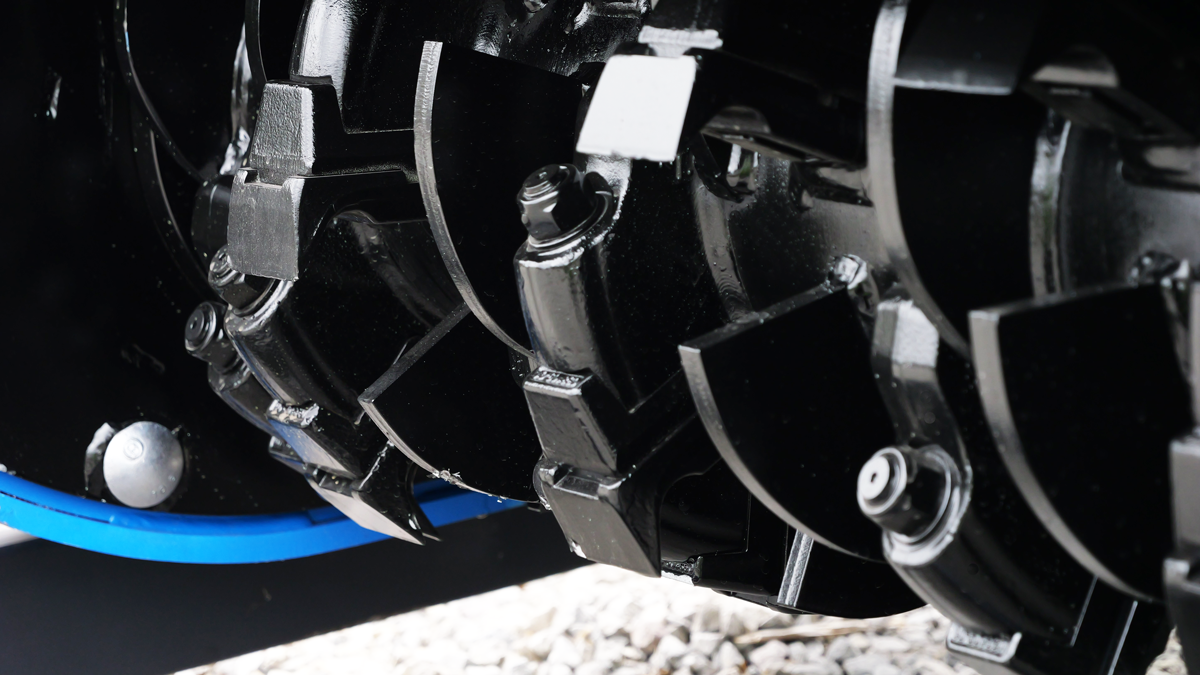

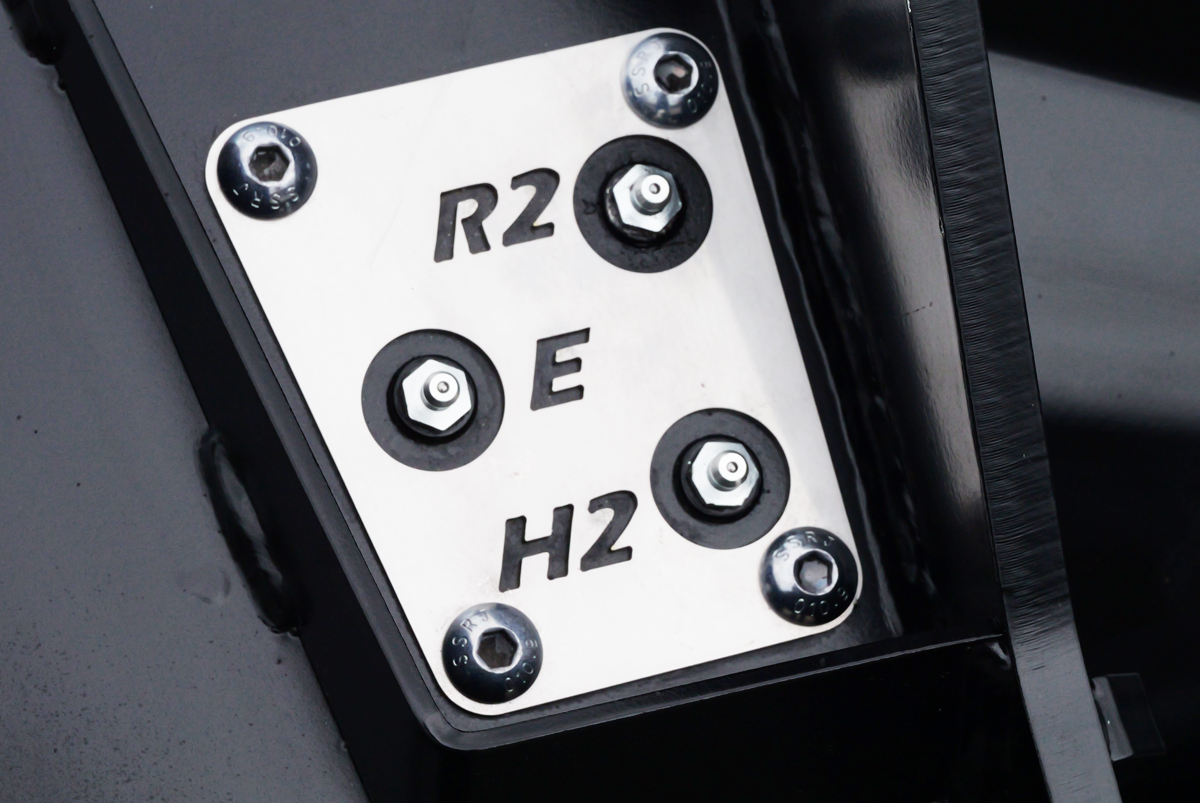

With a 60" working width and aĀ cutting diameter of 12 inches, no job is too tough! Our drum rotors have fixed teeth set in a helical position with āp-cutā depth limiters. The optional reversible carbide teeth are a must when working in rocky areas because it offers a maximum tooth lifespan. Routine maintenance is quick and easy with the centralized grease points and hydraulic quick couplers.

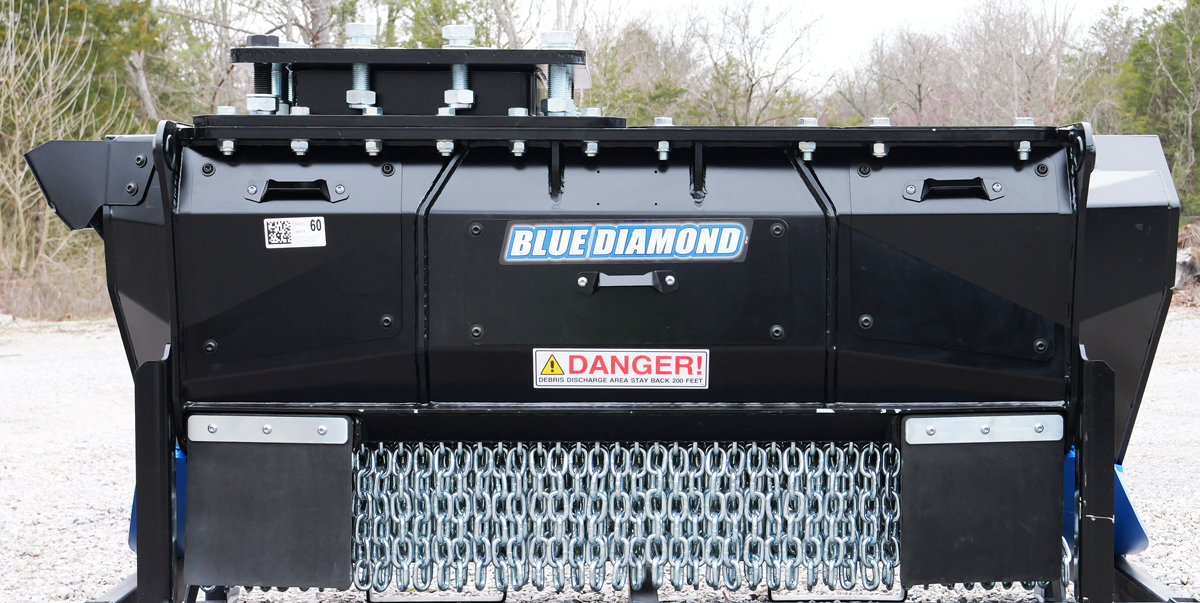

Two double rows of chains and rubber side shields on our SDX Drum Mulchers provide maximum protection of debris while also keeping the material flowing.
Product Details
Download Brochure- 49,000 - 70,000 Excavator Size
- Available in 60ā cutting width
- Variable Displacement (80 - 115cc Bosch Rexroth)
- Recommended Flow is 45-58 GPM
- 12" diameter cutting capacity
- Required pressureĀ 4,000-5,500 PSI
- Chain curtain minimizes discharge

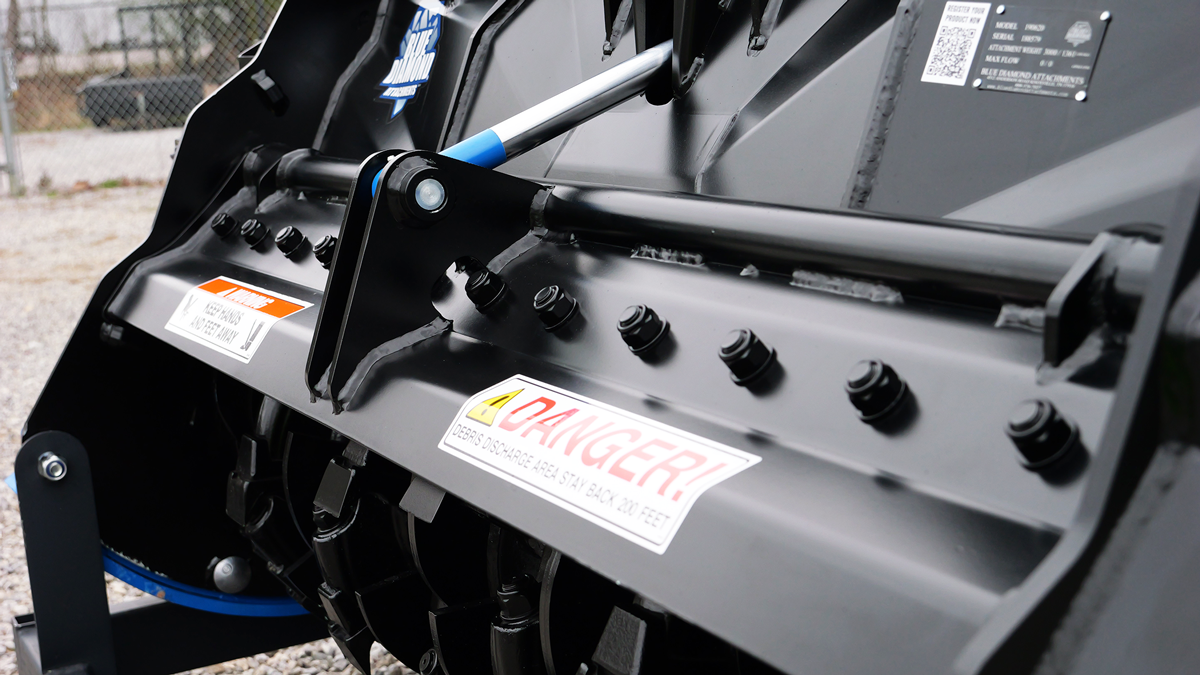

- Hydraulic front cover
- Requires case drain
REPLACEMENT PARTS & ACCESSORIES |
|---|

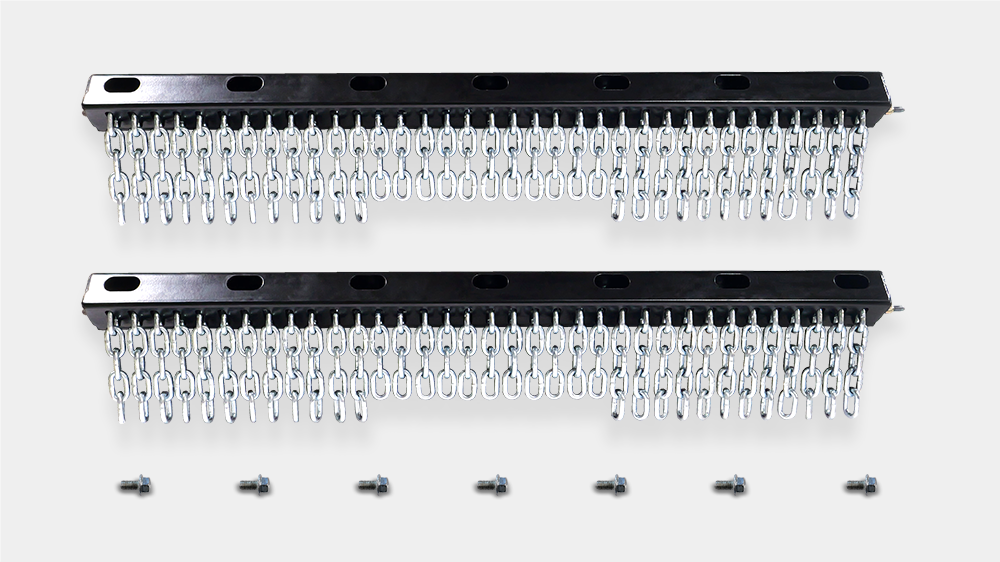

![]() | EXCAVATOR DRUM MULCHER
CHAIN GUARD SET |
![]() | EXCAVATOR DRUM MULCHER CHAIN GUARD SET 290504-KIT-60 |
![]() | EXCAVATOR DRUM MULCHER CHAIN GUARD SET 290504-KIT-60 |
| Part Number | Model | Required Flow | Motor Size | Weight |
|---|---|---|---|---|
| Part Number190620 | Model60" SDX Excavator Drum Mulcher, fits 49K-70K machines | Required Flow45-58 GPM | Motor Size80cc - 115cc | Weight3,000 lbs |
| Part NumberRequires case drain | Model | Required Flow | Motor Size | Weight |
