Product Details
Download Brochure- Available in 4", 5', 6' and 7' widths
- Adjustable cutting depth (1 to 4 inches)
- 3 overlapping replaceable blades

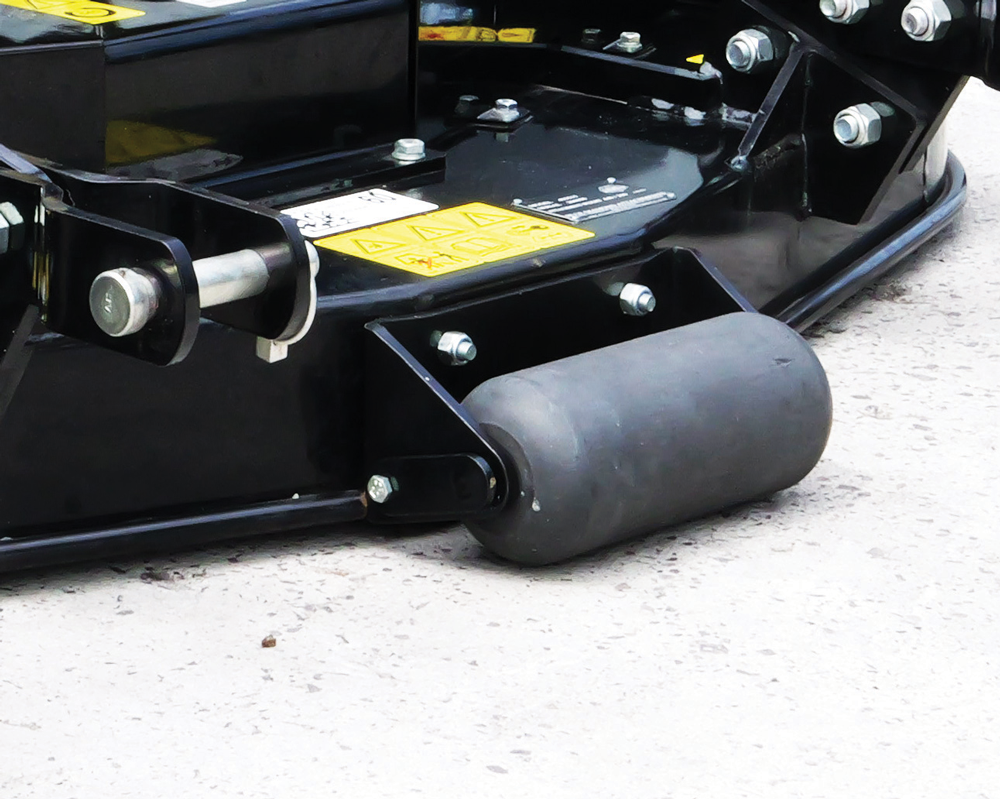

- Front roller standard
- Compatible with Cat 1 tractors and loaders with a 3 Point hitch
- Floating hitch with rear discharge
- 2-year warranty
| PART NUMBER | 403510 | 403515 | 403520 | 403525 |
| MODEL | 4" | 5" | 6" | 7" |
| OVERALL WIDTH | 52" | 65" | 76" | 89" |
| WORKING WIDTH | 48" | 60" | 72" | 84" |
| TRACTOR HP RANGE | 20-50 HP | 25-50 HP | 30-50 HP | 35-50 HP |
| CUTTING HEIGHT | 1"-4" | 1"-4" | 1"-4" | 1"-4" |
| 3-POINT HITCH TYPE | Category 1 | Category 1 | Category 1 | Category 1 |
| NUMBER OF BLADES | 3 | 3 | 3 | 3 |
| PTO INPUT SPEED | 540 RPM | 540 RPM | 540 RPM | 540 RPM |
| DECK THICKNESS | 7 Gauge | 7 Gauge | 7 Gauge | 7 Gauge |
| PTO SHAFT TYPE | Series 4 | Series 4 | Series 4 | Series 4 |
| BELTS | 2 | 2 | 2 | 2 |
| FRONT ROLLER | Standard | Standard | Standard | Standard |
| WEIGHT (WITHOUT PTO) | 450 lbs | 400 lbs | 554 lbs | 662 lbs |
